Display Pipe Tube Stadium Flat Galvanized Steel Structure Truss Purlin Design Channel Girder Canopy Roofing Steel Truss Prices

+8615650580332

+8615650580332

nini@jiekesteelstructure.com

Product Parameters

Item	Specification	Description
Material (Chord & Web Member)	Chord/Web Member: Q235B, Q355B (S235JR, S355JR)	High-quality carbon/low-alloy steel; chord (section steel/pipe) for main load-bearing, web (angle/round steel) for force transmission.
Galvanizing Process	Hot-Dip Galvanizing (HDG)	Complies with ASTM A123/A123M or GB/T 13912; zinc coating ≥ 85 μm (100-120 μm for coastal/humid areas).
Truss Span (m)	6-30 (customizable for special spans)	For small-to-medium spans; spans >18m need intermediate supports or section optimization.
Truss Height (m)	1.2-6.0 (height-span ratio 1/5-1/8)	Determined by span, load and slope; ensures optimal performance and cost-effectiveness.
Roof Slope	1:2.5 - 1:5 (20°-26.5°)	Adapts to roof materials; facilitates rain and snow drainage.
Panel Spacing (m)	1.5-3.0	Node spacing affecting truss stiffness and purlin arrangement.
Section Size of Members	Chord: H-beam (100×100-300×300)/Angle steel (L50×5-L100×10)/Pipe (φ50×3-φ159×6);Web: Angle steel (L40×4-L80×8)/Round steel(φ16-φ32)	Customized by load/span; larger spans use heavier sections.
Mechanical Performance	Yield Strength: ≥235/355 MPa (Q235B/Q355B); Tensile Strength: 375-500/470-630 MPa	Complies with GB 50017/AISC 360; stable under rated load.
Connection Method	Factory Welding + On-Site Bolt Connection	Factory pre-welding for precision; on-site bolting for quick assembly and reliability.
Applicable Load	Dead Load: 0.3-0.8 kN/㎡; Live Load: 0.5-1.0 kN/㎡; Snow Load: 0.3-1.5 kN/㎡ (regional-based)	Adjustable per local codes and scenarios (e.g., enhanced snow load for heavy snow areas).

详情_画板 1 副本 39

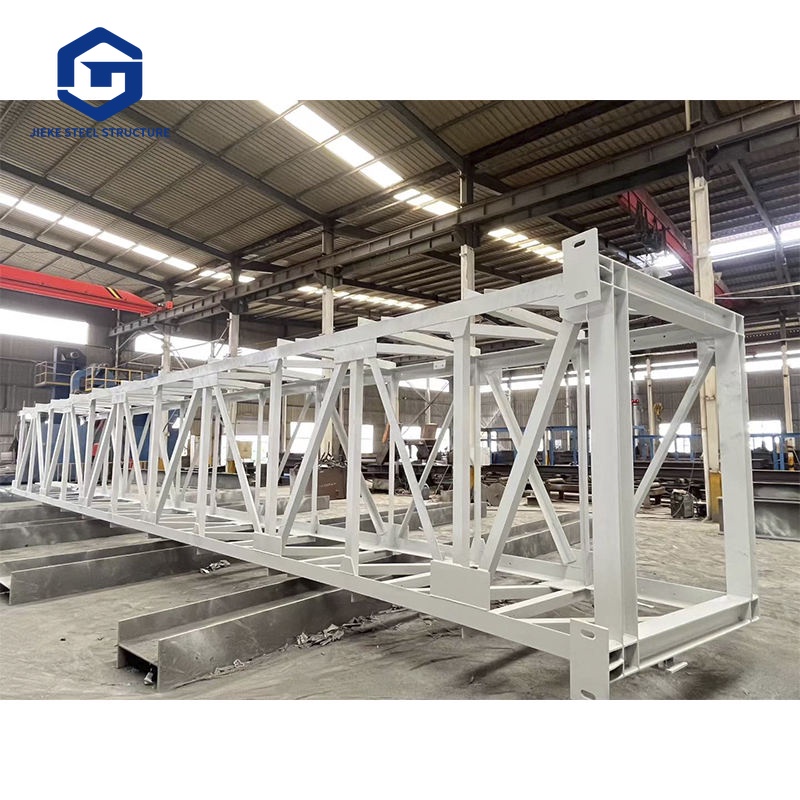

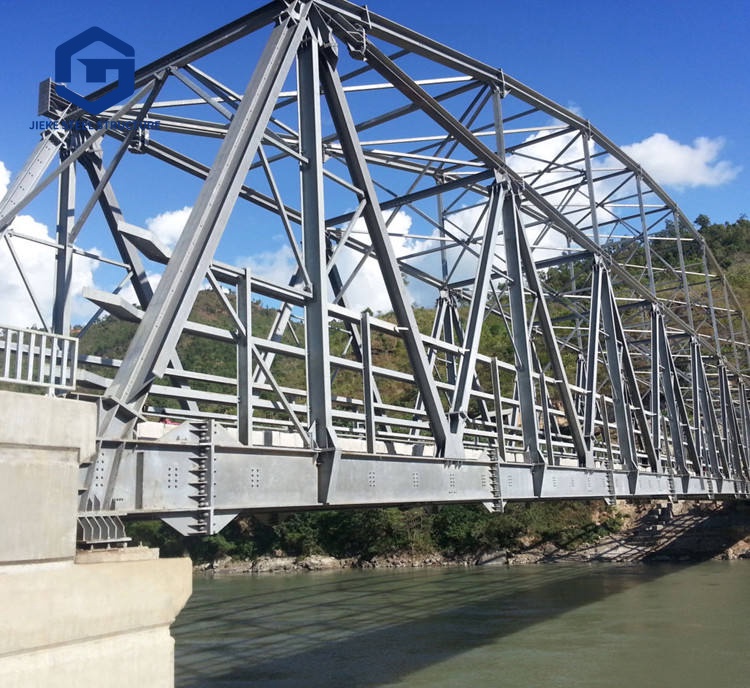

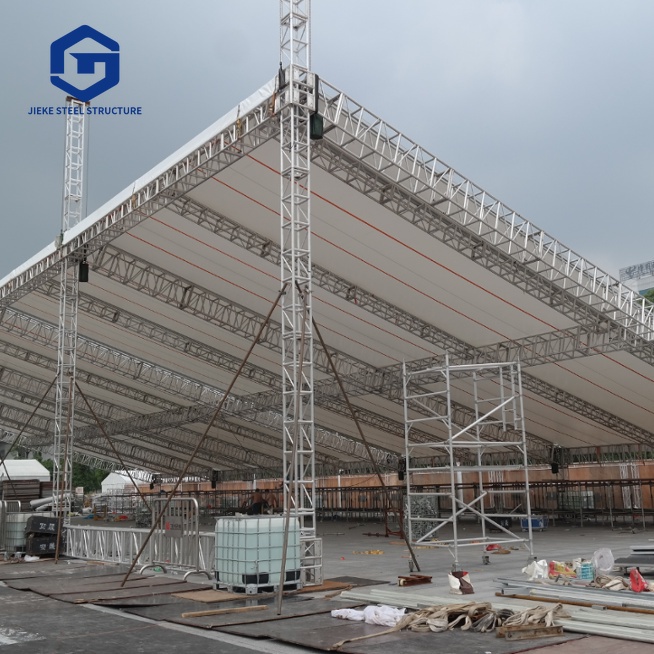

Product display

详情_画板 1 副本 38

Factory production process

Drawing design

Customer Project Case

Project Location: Africa
Total Site Area: 13,530.58 ㎡
Total Floor Area: 15,663.90 ㎡
Project Nature: Gable Frame Industrial Plant Building Dimensions (L × W × H): 200 m × 160 m × 7.15 m

Egypt New Energy Project
Total Site Area: 24,820.29 ㎡
Total Floor Area: 26,952.70 ㎡
Project Nature: Office Building and Industrial Plant Building Dimensions (L × W × H): 150 m × 150 m × 7.325 m

Project Name: Ethiopian Poultry Farm Project. Construction Scale(L × W): 120 m × 15 m Structural Features: Light steel structure, connected by H-shaped steel, Z-shaped steel, and C-shaped steel components of the main steel frame. The roof and walls are constructed with 50mm rock wool sandwich panels, offering strong wind resistance.

Project Name: Zambia Steel Structure Warehouse Building Dimensions (L x W x H): 60 m x 30 m x 7 m Floor Area: 1,800 m2 Structural Features: Adopts a classic double-slope, double-span design with a central column inside. The main load-bearing structure utilizes high-strength H-shaped steel for both beams and columns, while the enclosure system is covered with high-performance metal panels for walls and roof.

A380 Hangar, Teruel, Spain The hangar walls are 34 m high with a span of 95 m.

Regional Warehouse
Building area: 20,000 m2

Packaging and Transportation

FAQ



Q: How can I get a quote?

A: Please provide your country, total building area, length, width, height, and intended use to receive a preliminary quote.



Q: Is your company a factory or a trading company?

A: We are a manufacturing factory. You are welcome to visit our facility anytime. After your tour, you will receive the most
favorable and competitive quote.



Q: Can you provide drawings? How do I build a custom structure?

A: You may provide your own drawings. If no specific plan exists, our professional design team can create one based on your
requirements and local climate conditions. A design fee applies.



Q: Can I modify the steel structure building design?

A: We understand projects involve multiple stakeholders—sponsors, partners, or even your own engineers—leading to numerous revision requests. We commit to modifying designs based on your feedback until final approval.



Q: Can you dispatch engineers or a team for project installation?

A: Yes. We provide detailed installation drawings and videos free of charge, and can additionally offer installation guidance,
on-site supervision, and operational training services. However, the buyer is responsible for covering the technical personnel's visa fees, round-trip airfare, accommodation, meals, and wages.



Q: Delivery lead time?

A: Lead time depends on order quantity. Typically, goods can be shipped to the nearest port in China within 30 days after receiving the deposit.



Q: Do you accept container loading inspections?

A: We welcome your representatives to conduct inspections. Supervision is permitted not only during loading but at any stage throughout production.
